Model No.：FSTH-DAC100
Anti Drone System Vehicle

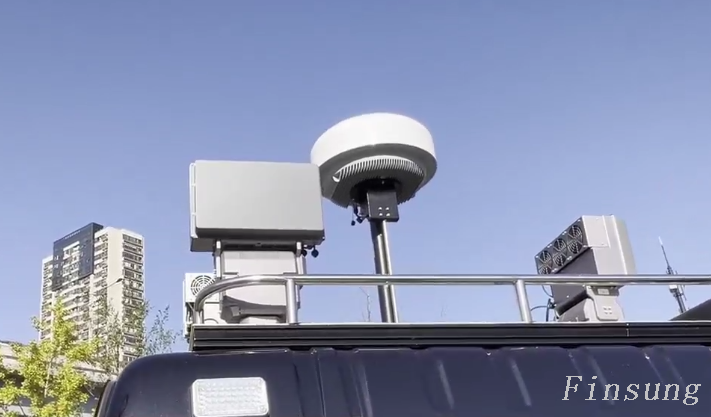

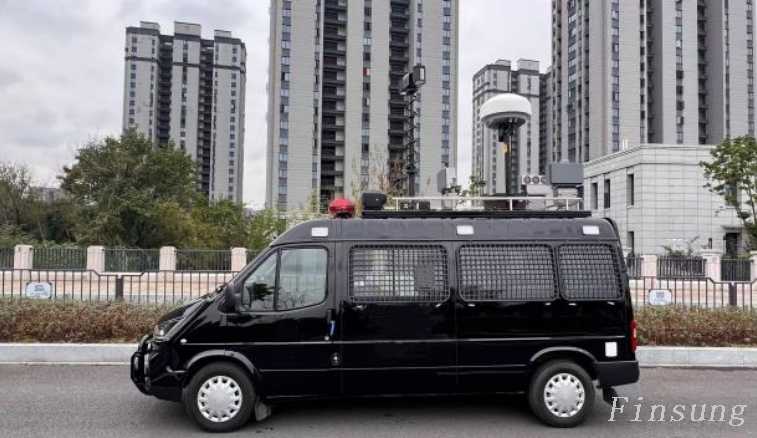

The vehicle-mounted unmanned aerial vehicle (UAV) detection and countermeasure system is based on spectrum detection and radio interference technologies, aiming to achieve the detection and countermeasure functions against rogue UAVs. It is designed for industrial integration with a sleek and concealed exterior, offering flexible deployment options. The system can rapidly detect nearby UAVs while the vehicle is in motion or stationary and take control of them by disrupting their remote control, video transmission, and navigation links. The system can be quickly deployed according to mission requirements,providing 24/7, all-weather, and three-dimensional UAV defense capabilities for mission security.
Key Features:
1.Maneuverable and Flexible: Based on a vehicle-mounted platform, it offers high concealment and strong mobility, suitable for various mobile and accompanying low-altitude security scenarios.
2.Passive Detection: It detects without actively emitting signals, making it environmentally friendly.
3.Integrated Surveillance and Engagement: Highly integrated, combining detection, early warning, interference, and command and control in one system, with the capability for standalone operation.
4.Unmanned Operation: It can operate autonomously, requiring no manual intervention, and can automatically provide warnings and take countermeasures.
Key Technical Specifications：
1.Detection Frequency Range: 300MHz〜6GHz
2.Airspace Coverage: Horizontal Coverage：0°～360°
Pitch Coverage：-90°～90°
3.Detection Radius: 6km
4.Direction Finding Accuracy: 3°（RMS）
5.Positioning Accuracy: 5m
6.Countermeasure Frequency Band : 800Mhz/900Mhz/1.2Ghz/1.4Ghz/1.5Ghz/2.4Ghz/5.8Ghz
7.Interception Radius: ≥3km
8.Interception Response Time: ≤5s
9.Total Power Consumption: ≤2500W
10.Network Interfaces: RJ45 BD24
11.Measurement: 1702x1059x670mm
12.Weight: ≤90kg
13.IP rate: IP 65
14.Working temperature: -40~+60℃
15.Humidity: 10~95%(25℃)
16.Surveillance and Control: Vehicle-Mounted Platform
